National key high-tech enterprise specialized in R&D, production and sales of high performance permanent magnetic materials
Neodymium Iron Boron (NdFeB), also known as Rare Earth Iron magnets are mainly comprised of iron, neodymium, boron and other trace elements is the strongest permanent magnets currently produced and has excellent magnetic properties, which allow this third generation magnetic material to be compact in size over traditional permanent magnets.

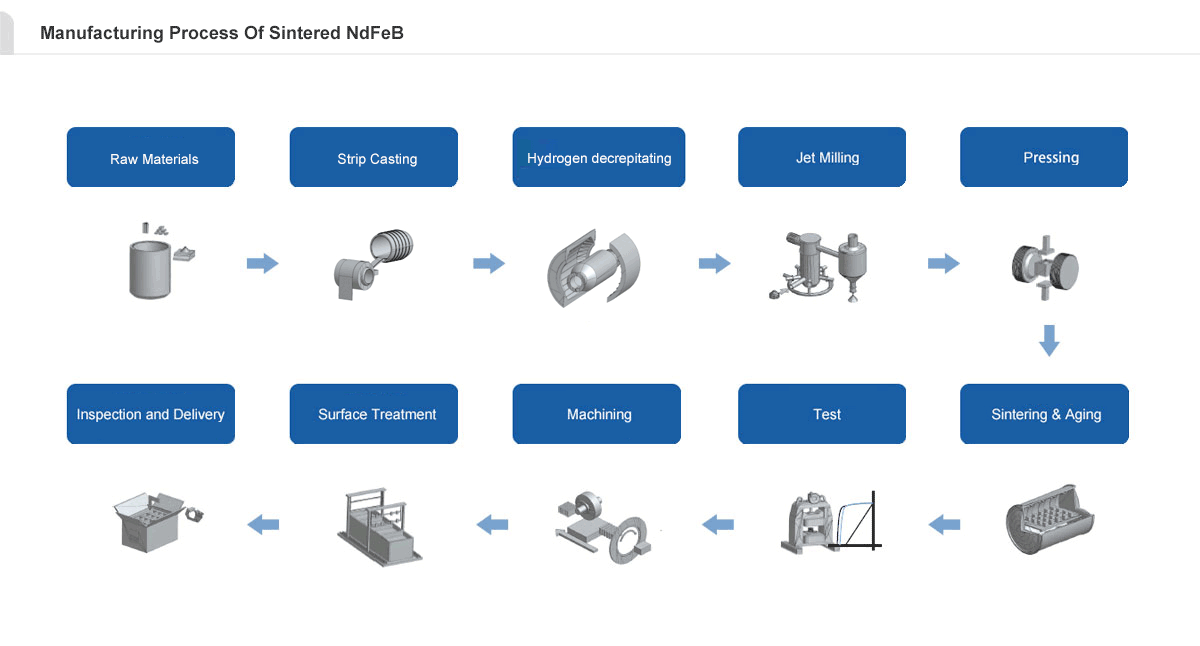

Caution
1.The magnetized products should be kept away from floppy disks, magnetic CARDS,
magnetic tapes, credit CARDS, electronic devices and electronic instrument boards,
pacemakers and other medical devices or similar objects.
2.Please pay full attention to avoid any finger injury when applying the magnetized product since it possesses strong magnetic force.
3.Please pay full attention to avoid any damages or chips during transport and handling
since NdFeB and SmCo magnet possesses weak impact resistance.
| Item | Parameters | Reference Value |
Additional magnetic properties | (α(Br))/(%/K) Temp.Coeff.ofBr | -0.08～-0.12 |
| (β(Hcj))/(%/K)Temp.Coeff.of Hcj | -0.42～-0.70 | |
| (Tc)/(°C)Curie Temperature | 310～380 | |
| (μrec)/(-)Recoil Permeability | 1.05 | |
Mechanical and physical properties | (g/cm3) Density | 7.45～7.70 |
| (Hv) Vickers Hardness | 650 | |
| (μΩ•m)Electrical Resistivity | 1.4 | |
| (MPa) Compressive Strength | 1050 | |
| (MPa)Tensile Strength | 80 | |
| (MPa)Bending Strength | 290 | |
| (W/(m•K))Thermal Conductivity | 6～8 | |
| (GPa) Young's Modulus | 160 | |
| Coefficient of Thermal Expansion(C ⊥) | -1.5 | |
| Coefficient of Thermal Expansion(C //) | 6.5 |
| Dimension Range(mm) | Plan view size(mm) | Parallelism(mm) | Perpendicularity (mm) |
| 0.5≤L≤10 | ±0.03 | ±0.03 | 0.3 degree for adjacent sides |
| 10≤L≤50 | ±0.05 | ±0.05 | |
| L>50 | ±0.1 | ±0.1 |
| Dimension Range(mm) | Cylindricity(mm) | Tolerance(mm) | Parallelism(mm) |
| 1≤D≤5 | ±0.02 | ±0.02 | ±0.02 |
| 5≤D≤25 | ±0.03 | ±0.05 | ±0.03 |
| 25≤D≤50 | ±0.05 | ±0.05 | ±0.05 |
| D>50 | ±0.05 | ±0.1 | ±0.1 |
| Dimension Range(mm) | Cylindricity(mm) | Tolerance(mm) | Parallelism(mm) |
| 1≤d≤3 | ±0.02 | ±0.02 | ±0.02 |
| 3≤d≤5 | ±0.04 | ±0.03 | ±0.02 |
| 5≤d≤15 | ±0.05 | ±0.05 | ±0.03 |
| d>15 | ±0.1 | ±0.05 | ±0.1 |
| Item | Dimension Range(mm) | Tolerance |
| Thickness | T≤10 | ±0.04 |
| 10<T≤25 | ±0.05 | |
| Length | L≤10 | ±0.03 |
| 10< L≤25 | ±0.03 | |
| 25< L≤63 | ±0.04 | |
| L>63 | ±0.06 | |
| Chordal Length | W>63 | ±0.05 |
| W>63 | ±0.06 |
Since NdFeB magnets easily corrode, it is often coated to protect against this. Traditional coatings arePhosphating, RB, Zn, NiCuNi, ZnNi and Epoxy with other options available. Selection of a coating should be discussed early on in the design and application process.
>> Temporary: Phosphating, RB
>> Inorganic: White Zn, Coloried Zn, NiCuNi, CuNi, Copper+Nickel, ZnNi
>> Organic: Electrophoresis Epoxy, Spraying Epoxy
